MC5.0SA3

We operate as a worldwide crane service provider delivering integrated one-stop lifting solutions. Backed by proven original Hyva lifting & hydraulic technology, paired with our self-owned machining, assembly and quality control production lines, we comply with international safety standards to deliver dependable complete cranes, custom refitting, spare parts and after-sales technical support for construction contractors, truck service firms and shipowners across the globe.

WhatsApp

E-mail

Product Details

COMANDE Marine Crane Structure Configuration	MC5.0SA3
I. Boom System
Boom Type: High-strength steel plate folding arm structure, main boom + jib combination	√Available
Number of Boom Sections: 3 sections	√Available
Main Boom Length:	4m
Telescopic Mode: Hydraulic telescopic, single cylinder cable synchronous telescopic, smooth telescopic movement with high efficiency	√Available
Boom Cross-section: U-shaped, strong bending and torsion resistance, good alignment performance	√Available
Luffing Mode: Hydraulic luffing, realizes curve lifting and lowering, wide working range	√Available
II. Slewing + Hoisting System
Slewing Mechanism: 360° full slewing, planetary gear slewing structure, easy installation, fatigue resistance and long service life	√Available
Dual Steering	XNot Available
Slewing Table	630
Hoisting Mechanism: Hydraulic winch, built-in balance valve + hydraulic lock, smooth and safe lowering	√Available
Steel Wire Rope:	Φ12
III. Hydraulic System Configuration
Hydraulic Oil Tank Volume:	65L
Control Mode: Hydraulic control, precise operation and good inching performance	√Available
Hydraulic Pump: Gear pump, stable flow output, can smoothly drive planetary slewing reducer, hydraulic motor and oil cylinder, smooth movement	√Available
Core Valve Components: Multi-way directional valve, stable performance;	√Available
Filtration System: High-precision oil suction filter, extends the service life of hydraulic components	√Available
IV. Safety Configuration
Safety Pressure Relief Valve for Marine Crane Hydraulic System	√Available
Seat: Superstructure Operation	√Available
Cooling System: Air-cooled hydraulic oil radiator, ensures stable oil temperature during long-time operation	XNot Available

Parameter	Unit	MC5.0SA3
Max.Lifting Capacity	T	5
Max.Lifting Moment	Ton.M	12.5
Max. Working Radius	m	10
Min. Working Radius	m	0.78

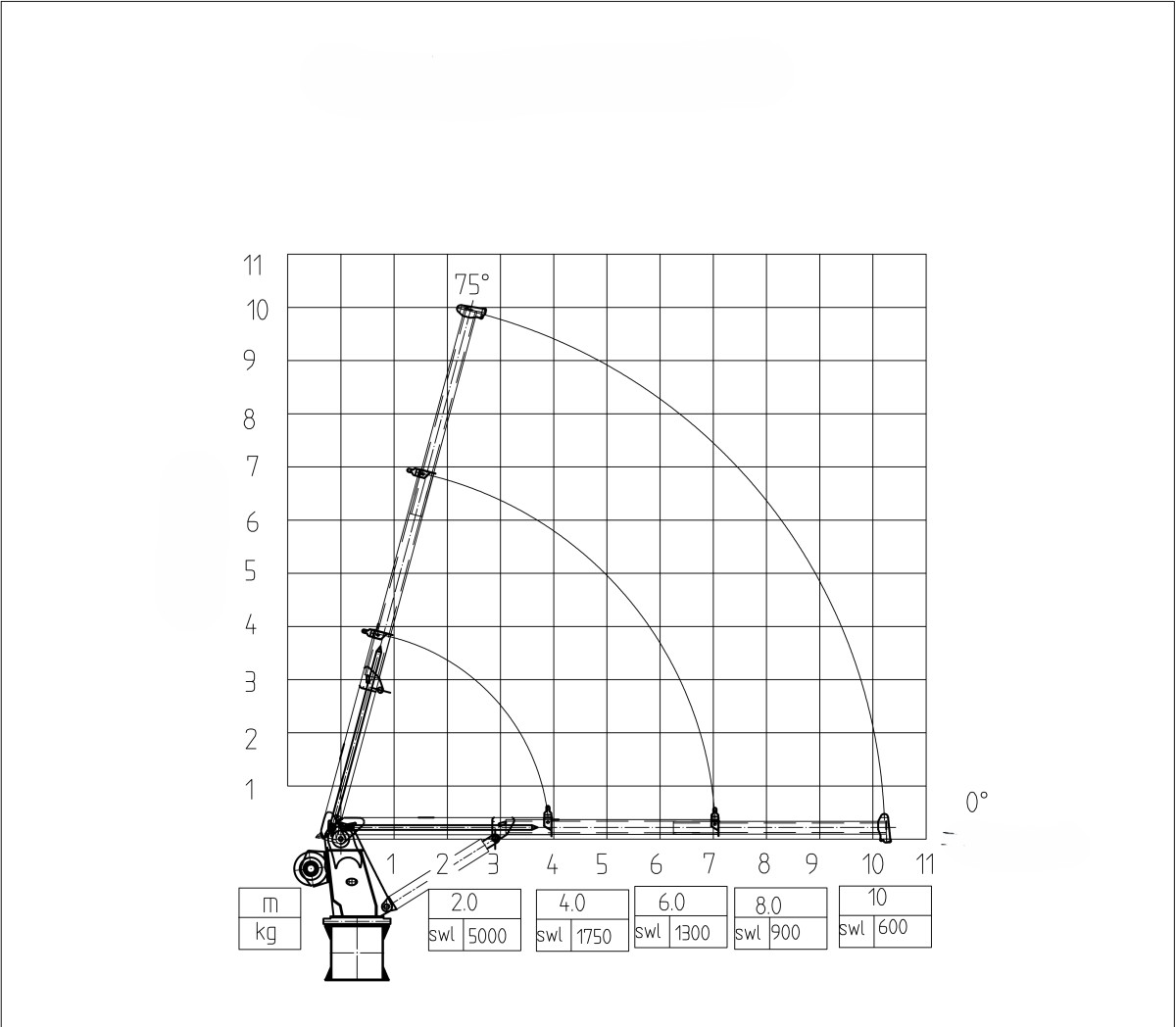

Capacity at min. hydraulic outreach(hook,kg) / Min. outreach(m)	kg/m	5000/2.0
Capacity at max. hydraulic outreach(hook,kg) / Max.outreach(m)	kg/m	600/10
Lifting Height Above Deck	m	10
Hoisting Speed	m/min	34
Slewing Speed	rpm	2.0
Luffing Time	s	15
Hydraulic System Pressure	mpa	20
Hydraulic System Flow	L/min	30
Slewing Angle	degrees	360 or Continuous
Maximum elevation angle of crane boom	degrees	75
Minimum elevation angle of crane boom	degrees	1
Power Supply -China	V/Hz	380V/50Hz/3Ph
Total Power	kW	11
Crane Weight (Approx.)	T	1.7
Working Temperature	°C	-20°C to +45°C
Control System		Remote Control/Manual

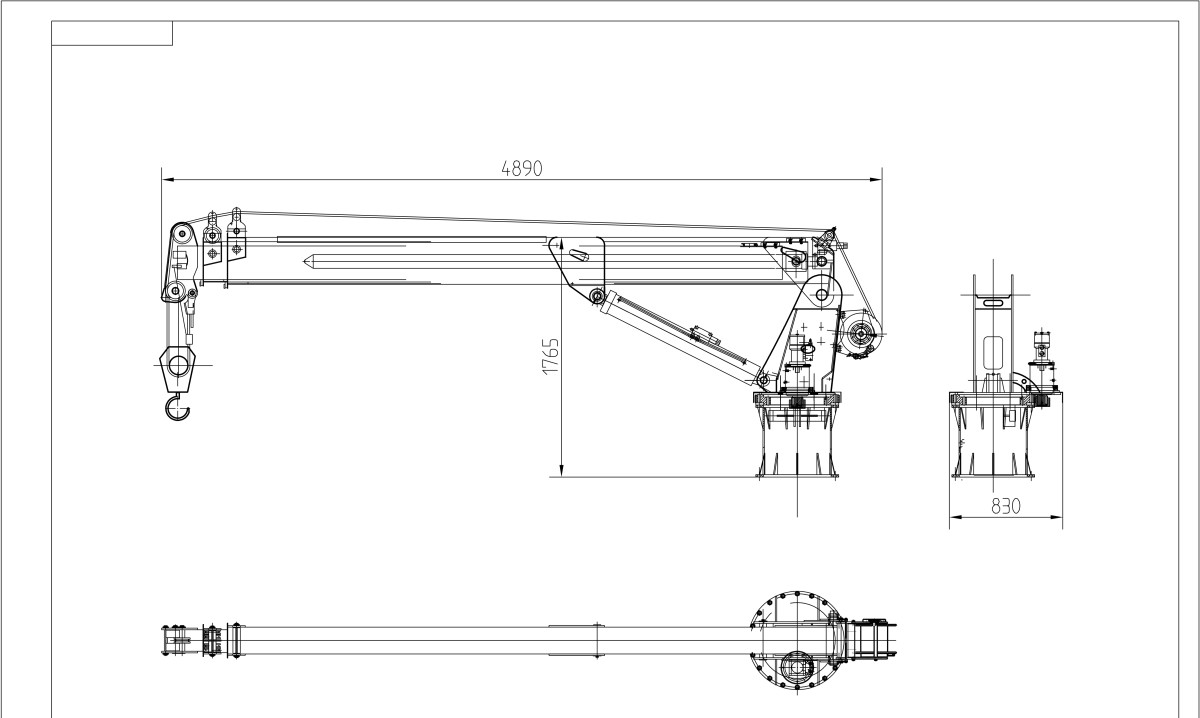

Overall Dimensions	mm	48901765830
