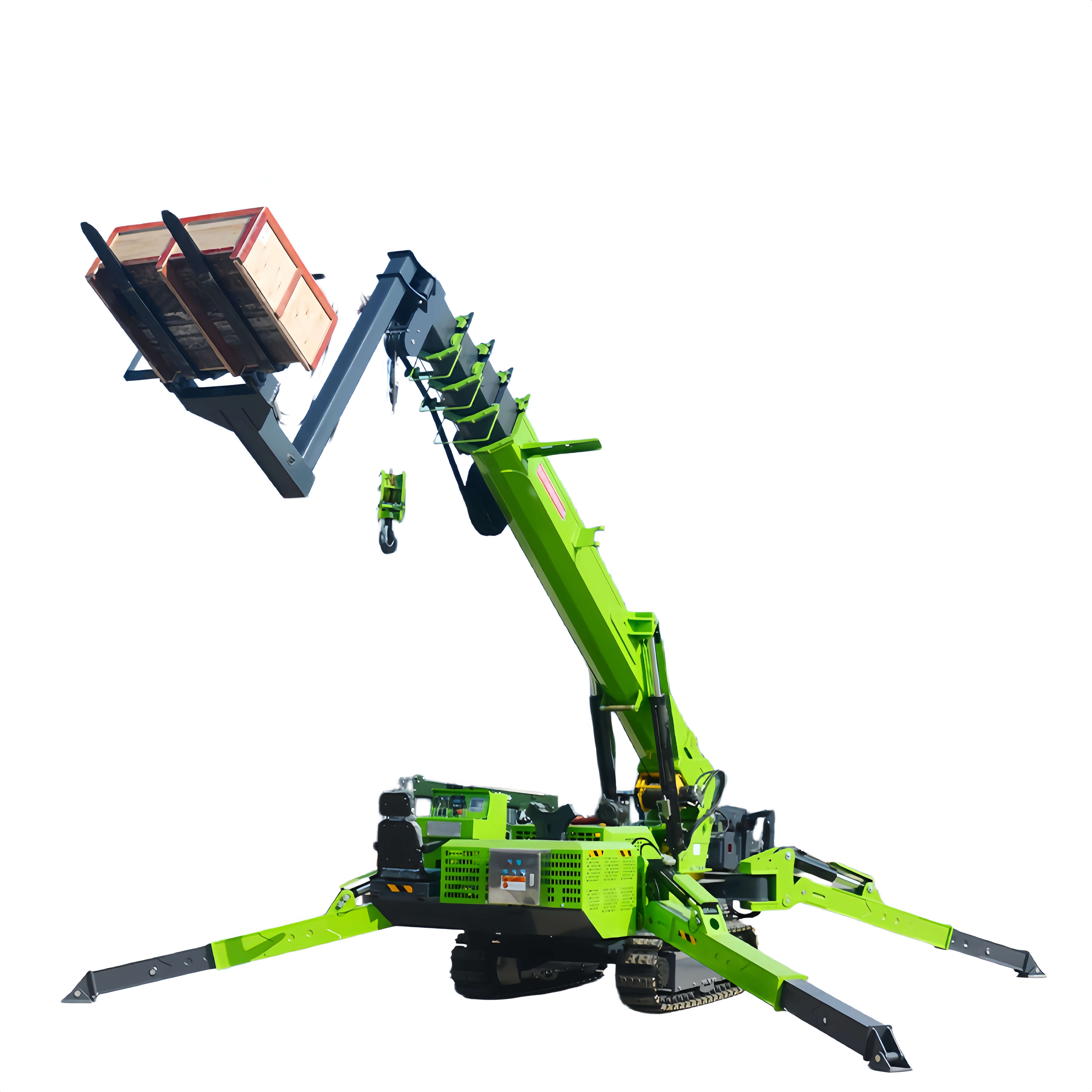

10 Ton spider crane equips Yunnei 76KW Euro II diesel engine, adopting wear-resistant steel crawler chassis for rugged construction sites. Max working radius reaches18m with 21m maximum lifting height, 5-section 5m boom design and double-speed hoist system. Full hydraulic outriggers with three-stage expansion structure, manual+optional remote dual operation mode, full set of optional attachments available for European heavy confined lifting projects.

Key Features

✅  Steel crawler chassis for rugged outdoor construction, superior wear resistance vs rubber track

✅  Three-way hydraulic retractable outriggers (screw out+hydraulic expand+hydraulic support) for excellent stability

✅  Double-speed hoist improves hoisting efficiency for heavy loads

✅  Long boom design with 18m max working radius to cover large operation range

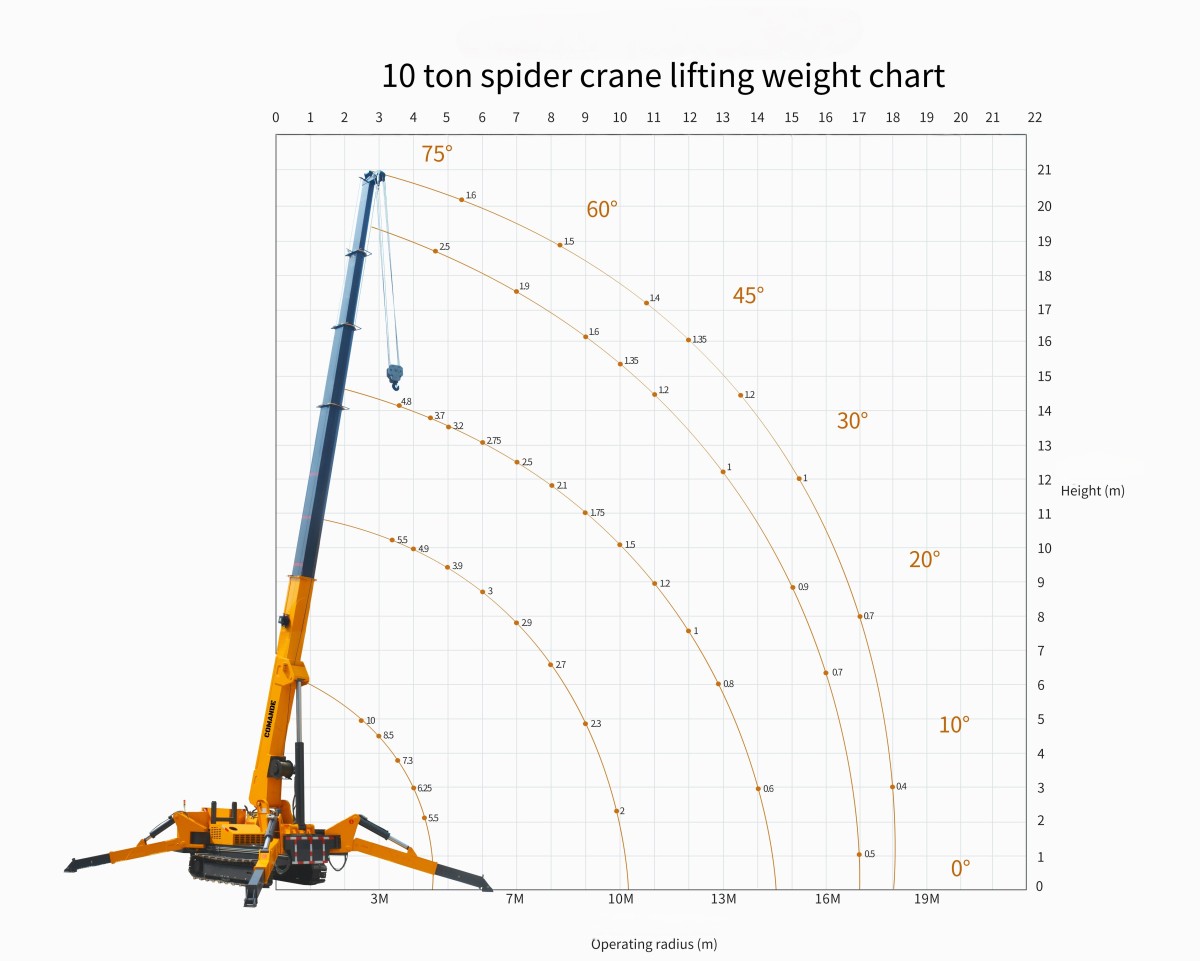

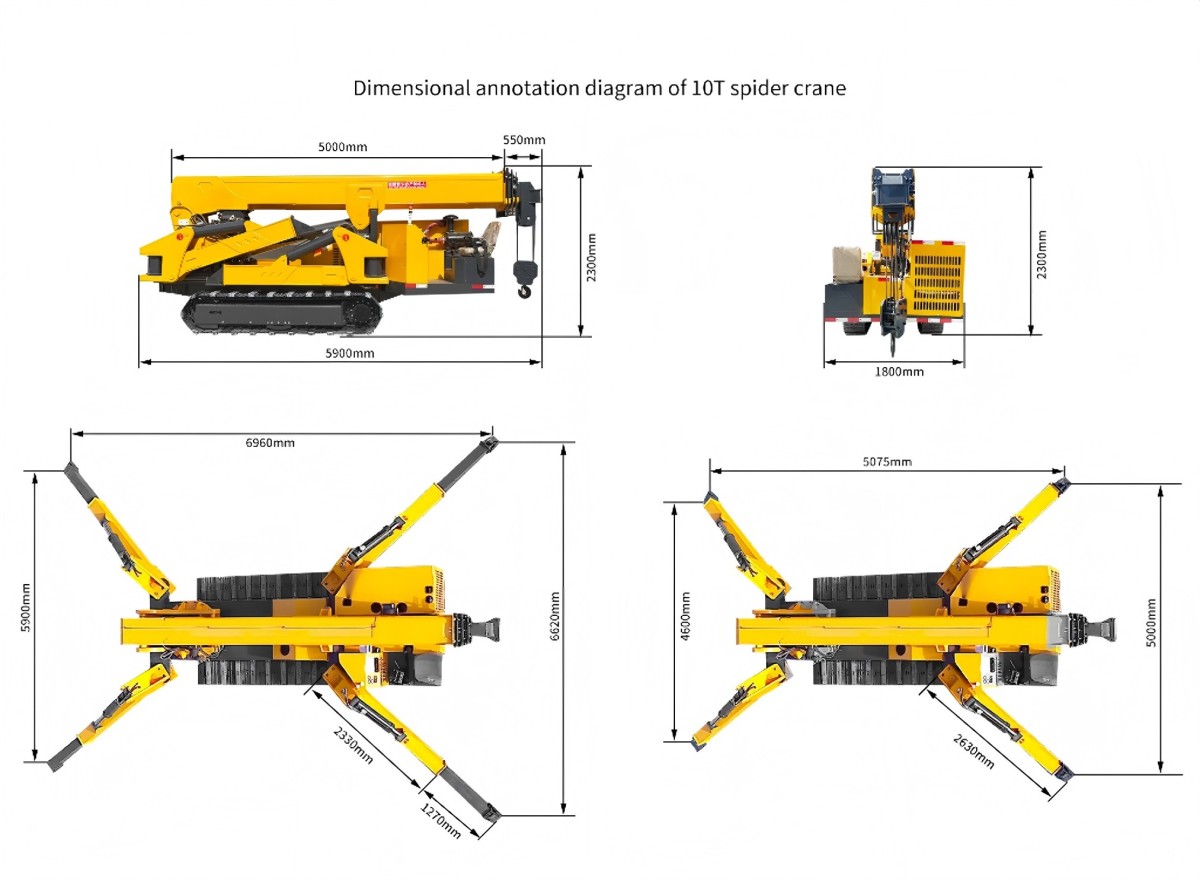

Technical Parameters

Application Scenarios

✅  Heavy machinery factory installation, underground parking large component hoisting

✅  Power station main equipment maintenance, large commercial complex construction

✅  Old town reconstruction heavy material transportation in narrow lanes

Regular Maintenance Instructions

✅  Rotary platform and main boom require maintenance every 20 days; apply grease every time after boom extension.

✅  Red-marked lubrication points: Inject molybdenum disulfide heavy grease via grease gun weekly.

✅  Green-marked engine part: Replace SAE10W-30 engine oil every 100 working hours.

✅  Yellow-marked reducer: Apply CKC220 mineral gear oil every 100 working hours.

All spider crane variants kept in stock, fast shipment to all EU member countries;

OEM customisation available for engine brand, body colour and accessory configuration on request.

Full body colour customisation: Red / Green / Yellow / White / Grey / Black
