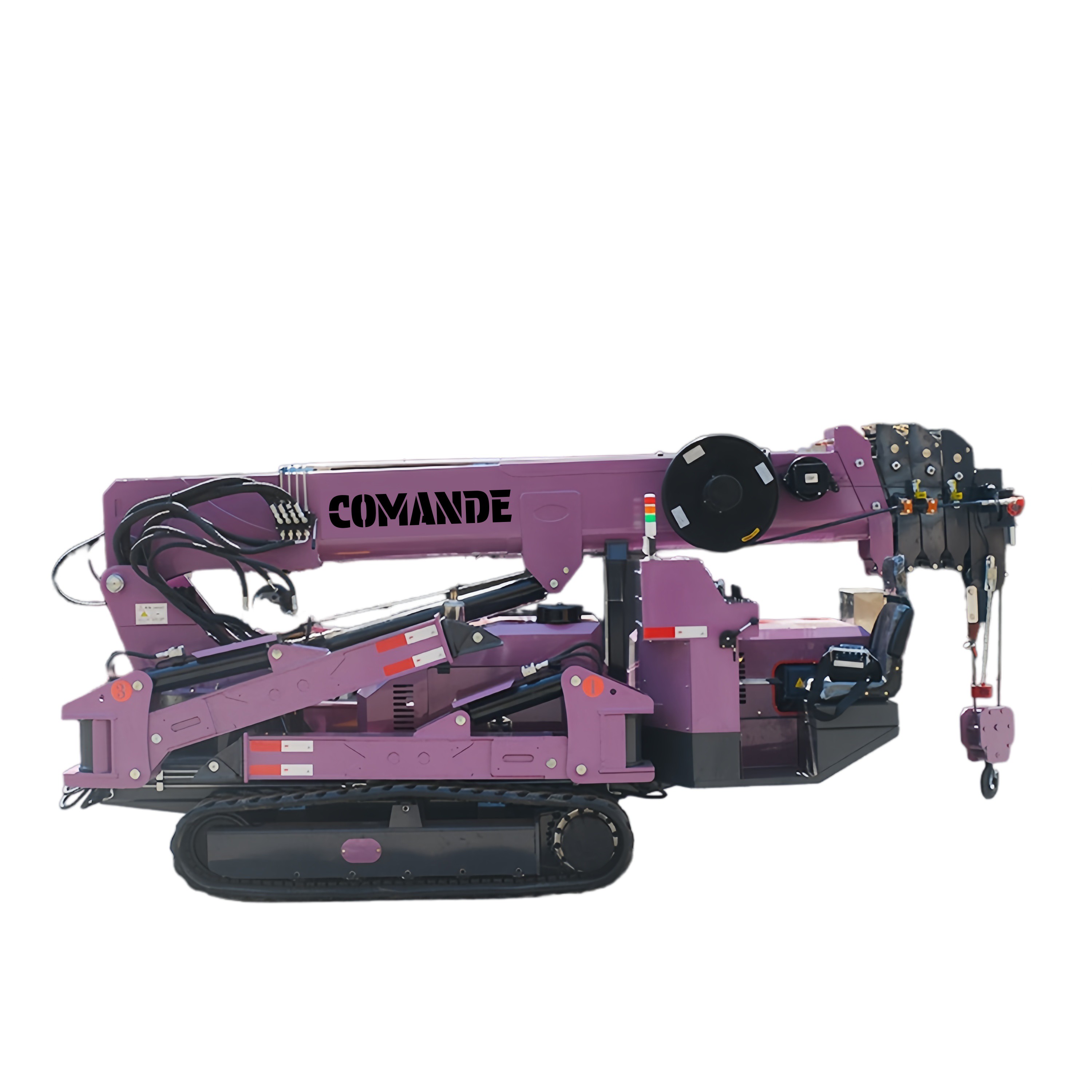

5 Ton spider crane is medium-large tonnage crawler lifting equipment with total self-weight 6.7T, powered by Yuchai 58KW diesel engine complying with Euro II emission standard. 5-section 4m standard boom achieves maximum 17m lifting height and 15m working radius, double-speed hoist improves construction efficiency. Equipped with hydraulic two-stage outriggers & wide anti-slip rubber crawler; optional remote control, man basket and load moment limiter for diversified European construction demands.

Key Features

✅  Double-speed hoisting system, hook speed up to12m/min for high-efficiency construction

✅  5-segment long boom, max lifting height 17m to meet mid-high floor hoisting requirements

✅  High & low speed switchable hydraulic travelling system adapts complex site terrain

✅  Safety anti-misoperation design + optional overload moment monitor for construction safety

✅  Wide 300mm rubber crawler, strong ground adaptability without floor damage

✅  Optional aerial work basket to switch between lifting & high-altitude operation

Technical Parameters

Application Scenarios

✅  Large factory mechanical equipment installation, warehouse heavy cargo hoisting

✅  High-rise commercial building exterior construction, curtain wall hoisting

✅  Bridge auxiliary component installation, municipal narrow-road engineering

Regular Maintenance Instructions

✅  Rotary platform and main boom require maintenance every 20 days; apply grease every time after boom extension.

✅  Red-marked lubrication points: Inject molybdenum disulfide heavy grease via grease gun weekly.

✅  Green-marked engine part: Replace SAE10W-30 engine oil every 100 working hours.

✅  Yellow-marked reducer: Apply CKC220 mineral gear oil every 100 working hours

All spider crane variants kept in stock, fast shipment to all EU member countries;

OEM customisation available for engine brand, body colour and accessory configuration on request.

Full body colour customisation: Red / Green / Yellow / White / Grey / Black
