Straight Boom FST3.2E3

We operate as a worldwide crane service provider delivering integrated one-stop lifting solutions. Backed by proven original Hyva lifting & hydraulic technology, paired with our self-owned machining, assembly and quality control production lines, we comply with international safety standards to deliver dependable complete cranes, custom refitting, spare parts and after-sales technical support for construction contractors, truck service firms and shipowners across the globe.

WhatsApp

E-mail

Product Details

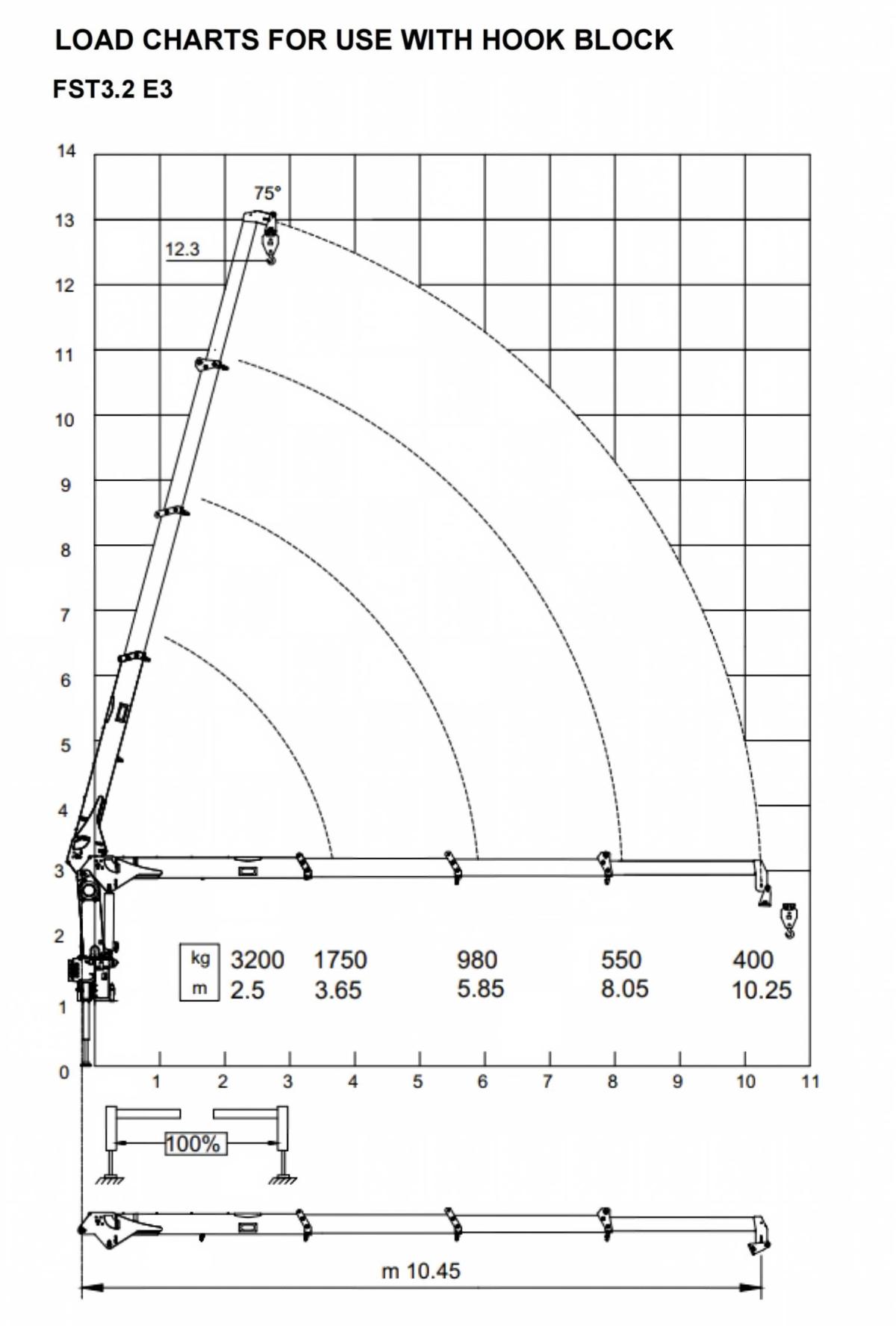

TRUCK-MOUNTED STRAIGHT BOOM CRANE'S TECHNICAL DATA
Versions	FST3.2E3
Max. capacity(t)	3.2
Max. net lifting moment(t·m)	8
Max. dynamic moment(kNm)	97
Capacity at min. hydraulic outreach(hook,kg) / Min. outreach(m)	3200/2.5
Capacity at max. hydraulic outreach(hook,kg) / Max.outreach(m)	400/10.25
Max. lifting height(hook,m)	12.3
Max slewing resistance torque(/kNm)	5.74
Max boom inclination(°)	75
Max. working pressure(bar)	220
Max. oil flow rate(ℓ/min)	40
Max. power needed(kW)	18
Oil tank capacity(ℓ)	66
Slewing angle(°)	360 ENDLESS
Crane weight（including hook block）(ST-M kg / EX-H kg)	1640/1740
Max. stabilizer force on the ground with stabilizers fully extended(ST daN / EX daN)	5606/4384
Max. stabilizer pressure on the ground with stabilizers fully extended(ST MPa / EX MPa)	2.8/2.2
Length of rope (m)	62
Applicable rope diameter (mm)	8
Layers of ropes	6
Rated tensile force of the outermost layer (kN)	12.5
