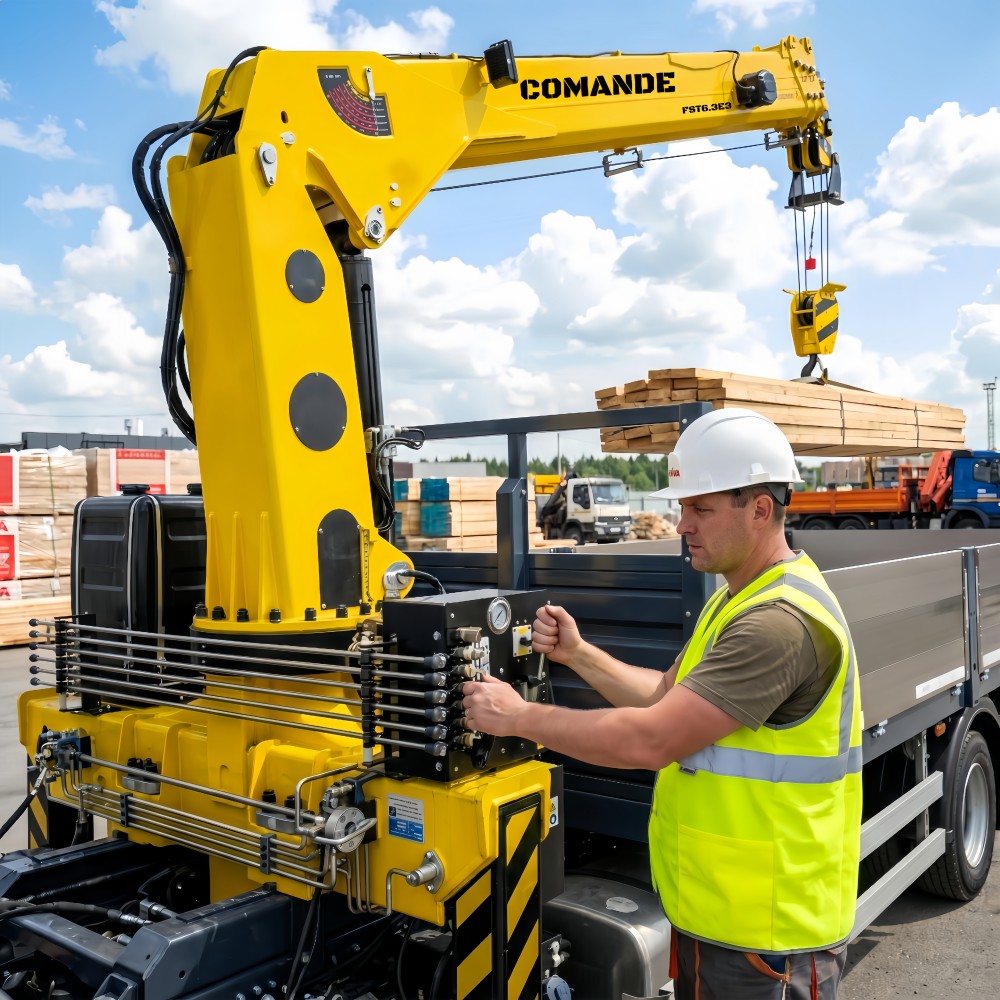

Straight Boom FST6.3E3

We operate as a worldwide crane service provider delivering integrated one-stop lifting solutions. Backed by proven original Hyva lifting & hydraulic technology, paired with our self-owned machining, assembly and quality control production lines, we comply with international safety standards to deliver dependable complete cranes, custom refitting, spare parts and after-sales technical support for construction contractors, truck service firms and shipowners across the globe.

WhatsApp

E-mail

Product Details

TRUCK-MOUNTED STRAIGHT BOOM CRANE'S TECHNICAL DATA
Versions	FST6.3E3
Max. capacity(t)	6.3
Max. net lifting moment(t·m)	15.75
Max. dynamic moment(kNm)	174
Capacity at min. hydraulic outreach(hook,kg) / Min. outreach(m)	6300/2.5
Capacity at max. hydraulic outreach(hook,kg) / Max.outreach(m)	600/12.64
Max. lifting height(hook,m)	13.6
Max slewing resistance torque(/kNm)	2.24
Max boom inclination(°)	75
Max. working pressure(bar)	220
Max. oil flow rate(ℓ/min)	50
Max. power needed(kW)	23
Oil tank capacity(ℓ)	100
Slewing angle(°)	360 ENDLESS
Crane weight（including hook block）(ST-M kg / EX-H kg)	2990
Max. stabilizer force on the ground with stabilizers fully extended(ST daN / EX daN)	7293
Max. stabilizer pressure on the ground with stabilizers fully extended(ST MPa / EX MPa)	3.5
Length of rope (m)	85
Applicable rope diameter (mm)	10
Layers of ropes	5
Rated tensile force of the outermost layer (kN)	17.5
